Raymond Nickel Plating Equipment Production Line - Versatile Surface Protection & Aesthetics

Raymond Nickel Plating Equipment Production Line

Versatile Surface Protection · Enhanced Durability · Aesthetic Brilliance

Product Introduction

The Raymond Nickel Plating Equipment Production Line offers a versatile and robust solution for applying high-quality nickel coatings. Nickel plating is widely recognized for its excellent corrosion resistance, wear resistance, and decorative appeal, making it indispensable across various industries including automotive, aerospace, electronics, and consumer goods. Our production lines are engineered with precision, integrating advanced automation and flexible process control to ensure consistent, superior nickel finishes.

At Raymond, we understand the diverse requirements of nickel plating, from functional applications demanding high wear resistance to decorative finishes requiring aesthetic brilliance. Our solutions are designed to optimize efficiency, minimize operational costs, and ensure environmental compliance, providing a comprehensive and adaptable system for your specific nickel plating needs.

Core Advantages of Raymond Nickel Plating Lines
Superior Corrosion Resistance: Nickel coatings provide excellent protection against rust and various corrosive environments, significantly extending the lifespan of components.
Enhanced Wear Resistance: Our lines produce nickel layers that offer good lubricating, wear, and abrasion resistance, crucial for functional applications.
Versatile Appearance: Achieve a range of finishes from bright and decorative to dull and functional, enhancing both the visual and performance aspects of your products.
Optimized Production Efficiency: Advanced automation and streamlined process flows minimize downtime and maximize throughput, leading to higher productivity and faster return on investment.
Reduced Operational Costs: Energy-efficient designs, precise material usage, and automated controls contribute to lower labor, energy, and raw material expenses.
Consistent Coating Quality: Intelligent monitoring systems and precise parameter control ensure uniform coating thickness and appearance across all products, enhancing overall quality.
Environmental Responsibility: Designed with sustainability in mind, our lines incorporate advanced waste treatment and emission control technologies to meet stringent environmental regulations and promote green manufacturing practices.

Process Flow

The Raymond Nickel Plating Equipment Production Line employs a meticulously engineered process flow to ensure optimal nickel coating adhesion and performance. Each stage is precisely controlled to achieve a durable and uniform protective layer, whether through electroplating or electroless plating methods.

Surface Preparation

Workpieces undergo thorough cleaning and degreasing using solvents or alkaline solutions, followed by rinsing and acid activation to remove oxides and prepare the surface for optimal nickel adhesion.

Nickel Plating (Electro or Electroless)

For electroplating, parts are immersed in a nickel electrolyte bath (e.g., Watts or sulfamate bath) with an electric current. For electroless plating, parts are immersed in a chemical bath where nickel is deposited via a chemical reaction without external electricity, ensuring highly uniform thickness.

Rinsing and Post-Treatment

Multiple rinsing steps remove residual plating solution. Depending on the application, post-treatments like heat treatment may be applied to improve hardness and adhesion.

Drying and Inspection

The plated parts are dried, followed by a final inspection to verify coating thickness, adherence, and overall finish, ensuring compliance with quality standards such as ASTM B689-97.

Process Innovation

Our lines feature advanced control systems for precise management of bath chemistry, temperature, and current density, crucial for achieving consistent and high-quality nickel deposits. For electroless nickel, our systems ensure exceptional uniformity even on complex geometries. Automated material handling systems enhance safety and efficiency, minimizing manual intervention and optimizing throughput.

Technical Specifications

Raymond Nickel Plating Equipment Production Lines are engineered for versatility and high performance, offering configurations tailored to specific production needs. Below are typical technical specifications, which can be customized to meet unique client requirements:

Technical Parameter	Specification Range	Notes

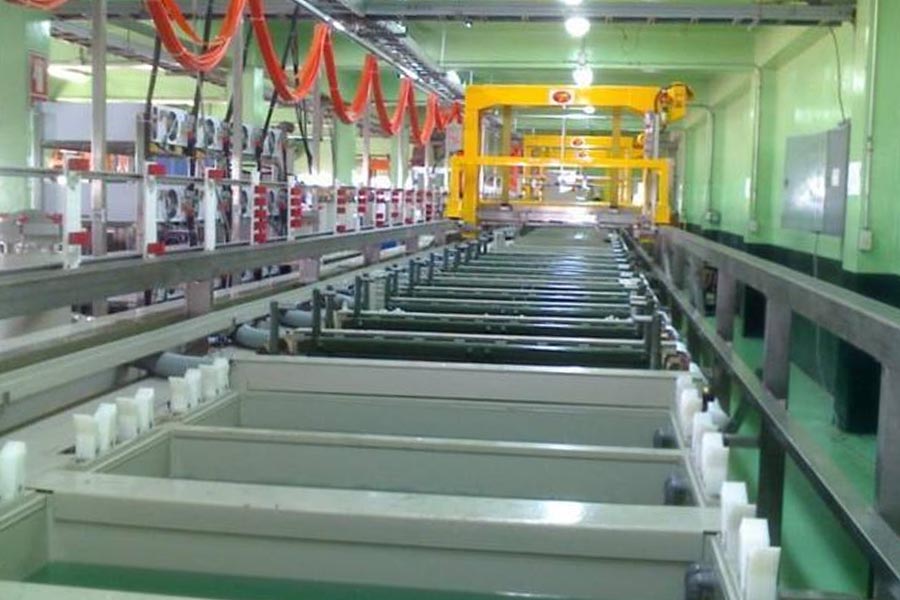

Production Line Type	Fully Automatic Gantry, Semi-Automatic, Manual (Rack & Barrel Plating)	Customizable based on automation and process requirements
Applicable Materials	Metal hardware, zinc, copper, steel, various metal components	Designed for diverse metallic substrates
Coating Thickness	Electroless Nickel: 0.0005-0.0010 inch (12.5-25 µm); Electrolytic: 100-700 micro-inches (2.5-17.5 µm)	Meets international standards like ASTM B689-97, MIL-C-26074
Part Size Accommodation	Up to 28 inches wide, 44 inches long, 32 inches deep, 500 lbs (Electroless Nickel)	Customizable for various part dimensions and weights
Plating Tank Material	Polypropylene, Stainless Steel (Type 316), Mild Steel with liner	Ensures durability and chemical resistance to nickel solutions
Plating Speed	Electroless Nickel: 15-60 minutes depending on desired thickness	Adjustable for optimal coating quality and throughput
Automation Level	PLC-controlled, intelligent monitoring, precise positioning	Minimizes human error and maximizes operational stability
Energy Efficiency	Optimized heating and rectifier systems	Reduces operational energy consumption
Environmental Controls	Integrated wastewater treatment, exhaust gas filtration	Compliance with strict environmental regulations

Customized Services

At Raymond, we pride ourselves on delivering bespoke nickel plating solutions. Our team of experts collaborates closely with clients from initial consultation and detailed engineering design to equipment manufacturing, seamless installation, and comprehensive post-sales support. We ensure that every Raymond Nickel Plating Equipment Production Line is perfectly aligned with your specific production goals, facility layout, and long-term strategic objectives, providing a truly integrated and optimized solution.

Solving Customer Pain Points

The Raymond Nickel Plating Equipment Production Line is engineered to directly address the most pressing challenges faced by manufacturers in the metal finishing industry, transforming common pain points into competitive advantages:

Enhancing Product Durability and Lifespan

Our advanced nickel plating processes deliver coatings with superior corrosion and wear resistance, significantly extending the operational life of components and reducing the need for frequent replacements.

Achieving Consistent Quality and Uniformity

With precise control over plating parameters and advanced bath management, our lines consistently produce uniform, high-quality nickel finishes, even on complex geometries, ensuring every product meets your exact specifications.

Optimizing Production Efficiency and Throughput

Highly automated systems and optimized process flows dramatically increase processing speed and capacity, leading to higher output, shorter lead times, and improved overall productivity.

Minimizing Operational Costs and Waste

Raymond lines are designed for maximum resource efficiency, reducing energy consumption, chemical usage, and material waste. This translates to substantial savings in operational expenses and a quicker return on investment.

Ensuring Environmental Compliance and Safety

Our commitment to sustainability is reflected in integrated wastewater treatment and exhaust gas filtration systems, helping you meet stringent environmental regulations and promote responsible manufacturing practices.

Providing Tailored Solutions for Diverse Applications

We offer unparalleled customization, designing lines that perfectly fit your unique product dimensions, production volume, and functional or decorative requirements. This bespoke approach ensures maximum efficiency and seamless integration into your existing operations.

Customer Success Stories

Our clients consistently report transformative results after implementing Raymond Nickel Plating Equipment Production Lines. A leading electronics manufacturer achieved a 40% increase in component lifespan due to enhanced corrosion resistance and a 25% reduction in plating defects. Another client in the automotive sector noted a significant improvement in wear resistance, leading to a 65% decrease in warranty claims related to surface degradation. These successes underscore our commitment to delivering tangible value and long-term partnerships.

Related Keywords: nickel plating equipment production line, electroplating nickel, electroless nickel plating, nickel coating, surface treatment, corrosion resistance, wear resistance, decorative plating, functional plating, automated plating line, industrial nickel plating, environmental compliance, customized plating solutions, Raymond

Nickel plating equipment production line is a key facility used in the plating industry to produce nickel-plated products, which covers a series of process steps from pre-treatment, plating to post-treatment. The following is a detailed introduction to the nickel plating equipment production line:

I. Overview of production line

Nickel plating equipment production line refers to the production line that passes the workpieces to be plated through a series of plating process steps, and finally forms a layer of uniform and dense nickel plating layer on the surface. The production line usually includes pretreatment equipment, plating tank, power supply equipment, filtration equipment, testing instruments, heating and cooling devices and post-treatment equipment.

II. Main Components

1. Pre-treatment equipment: It is used to remove oil, rust and other impurities on the surface of the workpiece to provide a clean surface for the plating process. Common pre-treatment equipment includes oil remover, pickling tank and so on.		5. testing equipment: used to detect the quality and thickness of plating layer, to ensure that the product meets the quality requirements. Common testing instruments include plating thickness gauge, microscope and so on.

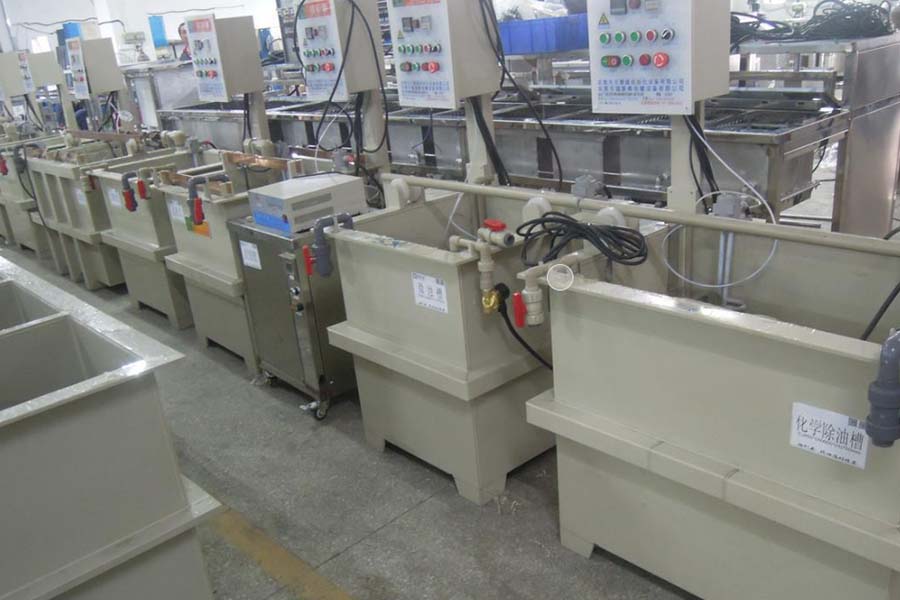

2. Electroplating tank: It is the core equipment of nickel plating process, which is used to deposit nickel ions onto the surface of workpiece to form plating layer. The material, shape and size of the plating tank should be determined according to the specific requirements of the workpiece.		6. Heating and cooling devices: used to control the temperature of the plating solution, to ensure that the plating reaction is carried out at a suitable temperature. The selection and configuration of heating and cooling devices should be determined according to the characteristics of the plating solution and process requirements.
3. power supply equipment: for the plating process to provide the required electrical energy to ensure the smooth progress of the plating reaction. The performance of the power supply equipment directly affects the quality and thickness of the plating layer.		7. Post-treatment equipment: It is used for cleaning and drying the workpieces after plating to improve the appearance quality and corrosion resistance of the products.

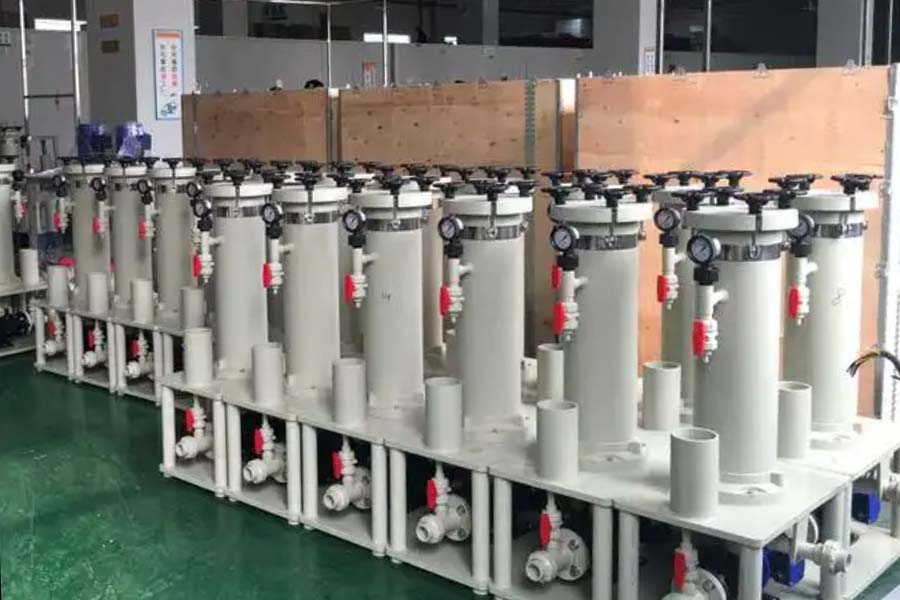

4. filtering equipment: used to remove impurities and particles in the plating solution, to maintain the cleanliness and stability of the plating solution. The selection and configuration of filtration equipment should be determined according to the composition of the plating solution and process requirements.

III. Features of production line

1. high degree of automation: modern nickel plating equipment production line generally adopts automation control technology, realizing the automation and intelligence of the plating process, improving the production efficiency and product quality.

2. High flexibility: the production line can be flexibly configured and adjusted according to different workpieces and requirements to meet the customized needs of different customers.

3. environmental protection and energy saving: the production line adopts advanced environmental protection technology and energy-saving equipment, which reduces the wastewater and exhaust gas emissions generated in the plating process, and lowers the production cost and environmental pollution.
