Electroless nickel plating equipment,Electroless nickel plating equipment manufacturer
Advanced Surface Coating Solutions · Superior Uniformity · Enhanced Corrosion & Wear Resistance

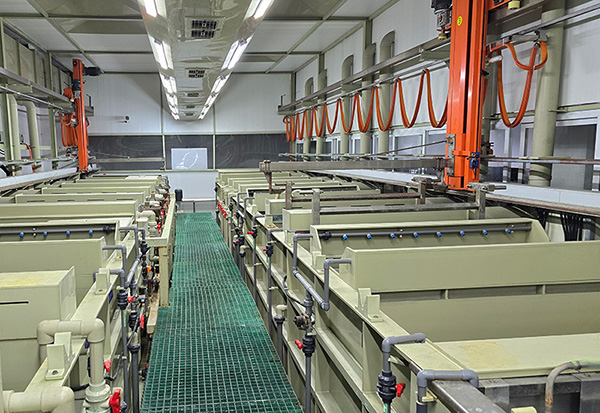

The Raymond Electroless Nickel Plating Equipment Production Line offers a state-of-the-art solution for depositing uniform, high-performance nickel-phosphorus coatings onto a wide array of substrates without the need for an external electrical current. This autocatalytic process is renowned for its ability to produce coatings with exceptional corrosion resistance, superior hardness, and remarkable wear resistance, making it indispensable across diverse industries such as automotive, aerospace, electronics, and oil & gas.
At Raymond, we understand the critical demands for precision and durability in modern manufacturing. Our electroless nickel plating lines are meticulously engineered to deliver consistent, high-quality results, ensuring uniform thickness even on complex geometries, internal surfaces, and blind holes. Featuring advanced chemical management systems, precise temperature control, and automated material handling, our lines optimize efficiency, minimize operational costs, and ensure strict environmental compliance. Partner with Raymond for a reliable and high-performance electroless nickel plating solution that elevates your product quality and extends component lifespan.
The Raymond Electroless Nickel Plating Equipment Production Line follows a precise, multi-stage process to ensure the uniform and high-quality deposition of nickel-phosphorus coatings.
Workpieces undergo thorough cleaning, including degreasing, rinsing, and acid activation, to remove contaminants and prepare the surface for optimal adhesion. This crucial step ensures a pristine and active substrate for plating.
For certain substrates (e.g., non-conductive materials), a catalytic activation step may be required to initiate the autocatalytic deposition process. This typically involves applying a thin layer of a noble metal catalyst.
The prepared parts are immersed in the electroless nickel plating bath. This bath contains nickel ions, a reducing agent (e.g., sodium hypophosphite), complexing agents, and stabilizers. Nickel is deposited onto the surface through a chemical reduction reaction, without external electricity.
After achieving the desired coating thickness, the parts move through multiple rinsing stages to thoroughly remove any residual plating solution, preventing contamination and ensuring cleanliness.
Depending on application requirements, parts may undergo post-treatment processes such as baking for hydrogen embrittlement relief, heat treatment to increase hardness, or passivation for enhanced corrosion resistance.
Finally, the parts are dried using hot air blowers or other suitable drying methods. Once dry, the finished electroless nickel-plated parts are ready for inspection, packaging, or further assembly.
Raymond Electroless Nickel Plating Equipment Production Lines are engineered for superior performance, reliability, and adaptability, incorporating advanced features inspired by global industry leaders.
| Technical Parameter | Specification Range |
|---|---|
| Production Line Type | Fully Automatic, Semi-Automatic, Manual (Rack & Barrel Plating) |
| Control System | PLC Control (e.g., Siemens, Mitsubishi), HMI Touchscreen, SCADA Integration |
| Plating Process | Electroless Nickel (Ni-P) Deposition |
| Phosphorus Content | Low (1-5%), Medium (6-9%), High (10-13%) |
| Coating Thickness | 5 - 100 µm (adjustable based on application) |
| Hardness (as plated) | 450-600 HV (Vickers Hardness) |
| Hardness (heat treated) | Up to 1000 HV (after heat treatment at 400°C) |
| Applicable Substrates | Steel, Stainless Steel, Aluminum, Copper, Brass, Zinc Die Castings, Plastics (with activation) |
| Tank Material | PP (Polypropylene), PVDF (Polyvinylidene Fluoride), Stainless Steel (316L) |
| Tank Configuration | Multi-stage immersion tanks with precise solution circulation |
| Production Capacity | Customizable, e.g., 50-200 m²/hour (depending on substrate size and process) |
| Temperature Control | ±0.5 °C Precision for plating baths |
| Chemical Dosing | Automated Dosing Pumps for Solution Maintenance and Replenishment |
| Filtration System | Continuous Filtration for plating baths |
| Environmental Controls | Fume Extraction & Scrubbers, Wastewater Treatment Options, Nickel Recovery Systems |
| Safety Features | Emergency Stop, Overload Protection, Safety Interlocks, Ventilation Systems |
The Raymond Electroless Nickel Plating Equipment Production Line is designed to effectively address critical challenges faced by manufacturers requiring high-quality, uniform, and functional coatings.
Our Solution: Electroless nickel plating provides superior throwing power, ensuring uniform coating thickness on intricate parts, internal surfaces, and blind holes, eliminating issues common with electroplating.
Our Solution: Our EN coatings offer exceptional protection against corrosion and abrasion, significantly extending the lifespan and performance of components in demanding environments.
Our Solution: Advanced automated process control systems maintain optimal bath chemistry and operating parameters, guaranteeing consistent, repeatable, and high-quality coatings batch after batch.
Our Solution: Our lines are designed for efficient chemical utilization, with features like multi-stage rinsing and options for nickel recovery, minimizing chemical waste and promoting more sustainable operations.
Our Solution: Electroless nickel can be applied to a wide range of metallic and non-metallic substrates, providing functional properties like hardness, lubricity, and conductivity (depending on phosphorus content).
Our Solution: Our EN plating lines are built to meet or exceed international quality standards, providing the traceability and performance required for critical applications in aerospace, automotive, and electronics.
Electroless nickel plating equipment production line is a kind of production line specialized in electroless nickel plating treatment of metal surfaces. This production line combines electroless nickel plating technology and automated production equipment, which can complete the nickel plating process efficiently and stably, and improve the production efficiency and product quality.
I. Introduction of chemical nickel plating technology
Electroless nickel plating is a kind of surface treatment technology that deposits nickel layer on the metal surface only by chemical reaction without external power supply. It has the advantages of simple process, uniform coating, strong corrosion resistance, good wear resistance, etc. It is widely used in electronics, aviation, automobile, machinery and other fields.
II. Composition of electroless nickel plating equipment production line
1. Pre-treatment equipment: including cleaning, degreasing, descaling and other processes, used to remove the dirt and oxides on the metal surface, to provide a clean substrate for the subsequent nickel plating process.
2. Electroless nickel plating tank: It is the core equipment in the production line, used for electroless nickel plating reaction. The bath is filled with plating solution, and by controlling the temperature, pH, concentration and other parameters of the plating solution, the nickel layer is deposited on the metal surface under the catalytic effect.
3. Automatic control system: It is used to monitor and control the operation of the whole production line, including the circulation, stirring, heating and cooling processes of the plating solution, as well as the detection and adjustment of the thickness of the plating layer.
4. Post-treatment equipment: including cleaning, drying, polishing and other processes used to remove the residues on the surface of the plated layer and improve the finish and beauty of the plated layer.
Large scale production base
Lei Meng Equipment have a production base of 15000 square meters and multiple professional production lines including imported large processing centers,including equipment production lines for chrome plating, zinc plating, copper plating, nickel plating,silver plating, gold plating, plastic electroplating, hanging plating, rolling plating, push plating, spray coating, and pre-treatment.
Exquisite workmanship
Simple and flexible operation, stable operation,easy management,low mechanical failure rate, and high usage efficiency.The equipment adopts materials from well-known brands in Japan,Taiwan and China to ensure stable and durable quality.After on-site installation, the equipment is repeatedly tested to ensure stability and quality.
Master core technology
Engineers have been engaged in the electroplating industry for many years,continuously improving equipment quality and providing technical support.By increasing investment in technology and improving research and development capabilities, we now have advanced technology research and design capabilities in the industry
Lei Meng (Changzhou) Equipment Co. Ltd. is a large-scale equipment manufacturing enterprise.After more than ten years of rapid development, ithas two major production bases in Changzhou and Wuxi, as well as a technology research and development center with a total area of 15000 square meters. lt has multiple professional production lines, including imported large-scale machining centers.
