Advanced Electroless Copper Deposition for Complex Substrates

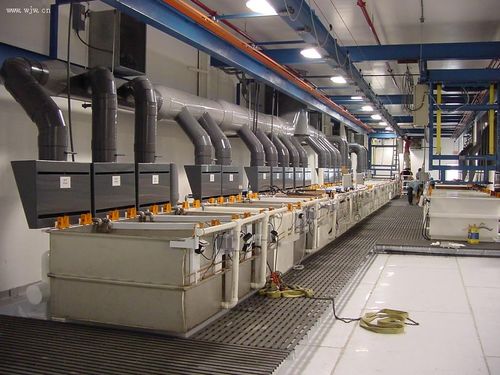

The Raymond Chemical Plating Copper Equipment Production Line offers a cutting-edge solution for depositing high-quality, uniform copper layers onto various substrates without the need for an external electrical current. This electroless plating process is particularly vital for applications requiring precise and consistent coating on complex geometries, non-conductive materials (after proper activation), and for through-hole metallization in printed circuit board (PCB) manufacturing. Chemical copper plating provides excellent adhesion, good electrical conductivity, and serves as a crucial base layer for subsequent plating processes.
At Raymond, our chemical copper plating lines are engineered with meticulous attention to detail, integrating advanced chemical management systems, precise temperature control, and automated material handling. We focus on delivering solutions that ensure bath stability, optimize deposition rates, and produce highly reliable copper layers. Drawing on global best practices from Europe, USA, Japan, and Korea, our lines are designed for high efficiency, minimal chemical waste, and adherence to stringent quality and environmental standards. Partner with Raymond for a state-of-the-art chemical copper plating solution that provides superior performance and supports your most demanding manufacturing requirements.
The Raymond Chemical Plating Copper Equipment Production Line follows a precise multi-step process to ensure the uniform and high-quality deposition of copper onto various substrates. The process is designed for optimal adhesion and performance, particularly for non-conductive materials and complex geometries.
Substrates are thoroughly cleaned to remove oils, grease, and other contaminants. This typically involves alkaline cleaning and rinsing. For non-conductive materials, a roughening step (e.g., etching) may be included to create a micro-roughened surface for better adhesion.
The surface is conditioned to prepare it for catalyst adsorption. This step modifies the surface to promote uniform and strong adhesion of the subsequent catalyst layer.
A catalyst, typically a palladium-tin colloid, is applied to the surface. This catalyst is crucial as it initiates the autocatalytic deposition of copper in the subsequent plating step. Proper activation ensures uniform and complete coverage.
After activation, an accelerator solution is used to remove the tin component from the palladium-tin complex, exposing the active palladium sites. This step ensures that the palladium catalyst is fully active for copper deposition.
The activated substrates are immersed in the electroless copper plating bath. This bath contains copper ions, a reducing agent (e.g., formaldehyde), a complexing agent, and stabilizers. Copper ions are reduced and deposited onto the catalyzed surface without external electricity, forming a uniform copper layer.
After achieving the desired copper thickness, the parts move through multiple rinsing stages to thoroughly remove any residual plating solution, preventing contamination and ensuring cleanliness.
Finally, the parts are dried using hot air blowers or other suitable drying methods. Once dry, the finished chemical copper-plated parts are ready for inspection or further processing.
Raymond Chemical Plating Copper Equipment Production Lines are engineered for superior performance, reliability, and adaptability, incorporating advanced features inspired by global industry leaders.
| Technical Parameter | Specification Range |
|---|---|
| Production Line Type | Fully Automatic Electroless Copper Plating Line |
| Control System | PLC Control (e.g., Siemens, Mitsubishi), HMI Touchscreen, SCADA Integration |
| Plating Process | Electroless Copper Deposition |
| Applicable Substrates | PCBs (Through-hole, Via-hole metallization), Plastics (ABS, PC/ABS), Ceramics, Composites, etc. |
| Tank Material | PP (Polypropylene), PVC (Polyvinyl Chloride), PVDF (Polyvinylidene Fluoride) |
| Tank Configuration | Multi-stage immersion tanks with precise solution circulation |
| Production Capacity | Customizable, e.g., 50-200 m²/hour (depending on substrate size and process) |
| Temperature Control | ±0.5 °C Precision for plating baths |
| Chemical Dosing | Automated Dosing Pumps for Solution Maintenance and Replenishment |
| Filtration System | Continuous Filtration for plating baths |
| Environmental Controls | Fume Extraction & Scrubbers, Wastewater Treatment Options, Copper Recovery Systems |
| Safety Features | Emergency Stop, Overload Protection, Safety Interlocks, Ventilation Systems |
The Raymond Chemical Plating Copper Equipment Production Line is designed to effectively address critical challenges faced by manufacturers requiring high-quality, uniform copper deposition, especially on non-conductive or complex substrates.
Our Solution: Electroless copper plating allows for uniform deposition on plastics, ceramics, and intricate shapes, including the inside of through-holes and vias in PCBs, which is impossible with electroplating alone.
Our Solution: The superior throwing power of the electroless process ensures consistent copper thickness across all surfaces, eliminating issues like uneven plating in low current density areas or deep recesses.
Our Solution: Our meticulously designed pre-treatment and activation steps ensure excellent adhesion of the chemical copper layer to various substrates, providing a robust and reliable metallized surface.
Our Solution: Advanced automated chemical dosing and filtration systems maintain optimal bath chemistry, preventing bath decomposition and extending the lifespan of the plating solution, reducing operational costs and downtime.
Our Solution: Our lines are designed for efficient chemical utilization, with features like multi-stage rinsing and options for copper recovery, minimizing chemical waste and promoting more sustainable operations.
Our Solution: The high-quality chemical copper layer serves as an ideal, highly conductive base for subsequent electroplating processes (e.g., nickel, gold), ensuring strong adhesion and optimal performance of the final metallization.
A chemical plating line is a type of production line that specializes in depositing layers of copper on the surface of materials by chemical means. Such lines typically include a series of processing steps and equipment for an efficient copper plating process. The following is a detailed overview of the chemical copper plating equipment production line:
I. Line Components
1. Pretreatment Equipment: Used for cleaning, degreasing, descaling and other treatments on the substrate to ensure that the substrate surface is clean and free of impurities to provide good adhesion conditions for subsequent copper plating. This equipment may include cleaning tank, spraying device, ultrasonic cleaning machine and so on.
2. Chemical copper plating tank: This is the core part of the production line, which contains the chemical copper plating solution. Under proper temperature and agitation conditions, the substrate is immersed in the copper plating solution, and a uniform copper layer is deposited on the surface of the substrate by chemical reaction. Copper plating solution usually contains copper ions, reducing agents, complexing agents, stabilizers and other components.
3. Post-treatment equipment: Used for further processing of the copper plated product, such as cleaning, drying, polishing, etc. These steps are designed to remove the copper layer from the surface of the plating. These steps are designed to remove residues from the plated surface and improve the finish and corrosion resistance of the plated layer.
4. Auxiliary equipment: such as heating system, cooling system, stirring device, filtration system, etc., which are used to maintain the temperature, stirring intensity and quality of the plating solution during the copper plating process.
II. Working Principle
Chemical copper plating is a kind of electroless copper plating process, the basic principle is that copper ions in the copper plating solution are reduced to metallic copper under the action of reducing agent and deposited on the surface of the substrate. This process does not require an external power source, but is carried out spontaneously by chemical reactions.
