Raymond Long Rod Advance Chrome Plating Equipment - Precision Chrome Coating

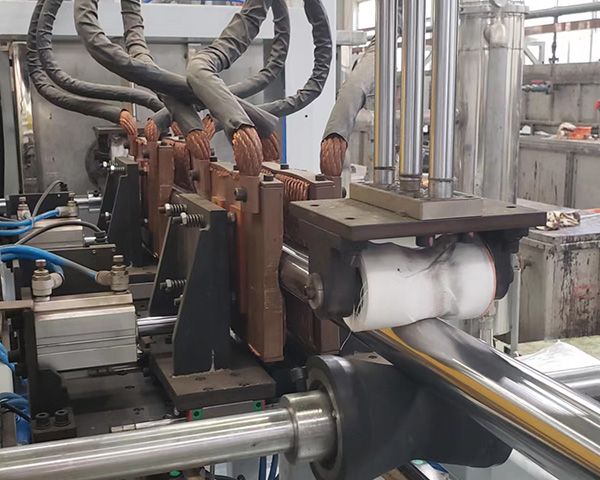

Raymond Long Rod Advance Chrome Plating Equipment

Precision Chrome Coating · Extended Components · Superior Performance

Product Introduction

The Raymond Long Rod Advance Chrome Plating Equipment is a specialized solution designed for the precision chrome plating of extended components such as hydraulic rods, piston rods, shafts, and other long cylindrical parts. This advanced system provides exceptional hard chrome coatings that deliver superior wear resistance, corrosion protection, and dimensional accuracy. Our equipment is essential for hydraulic cylinder manufacturers, automotive component producers, aerospace applications, and heavy machinery industries where long-lasting, high-performance chrome coatings are critical for operational reliability and component longevity.

At Raymond, we integrate global best practices and innovative technologies from leading manufacturers in Europe, USA, Japan, and Korea to deliver superior long rod chrome plating solutions. Our equipment is engineered for optimal performance, precision, and reliability, featuring advanced rod handling systems, precise current distribution, and automated process control. We focus on providing systems that not only achieve exceptional coating quality but also maximize production efficiency, minimize waste, and ensure compliance with stringent industry standards. Partner with Raymond for a robust and efficient long rod chrome plating solution that enhances your component performance and strengthens your competitive position in demanding applications.

Core Advantages of Raymond Long Rod Advance Chrome Plating Equipment
Precision Rod Handling: Advanced automated systems ensure precise positioning and rotation of long rods during the plating process, achieving uniform coating thickness and superior surface quality.
Superior Hard Chrome Quality: Our optimized plating process delivers hard chrome coatings with exceptional hardness (typically 850-1000 HV), wear resistance, and corrosion protection.
Extended Component Capability: Designed to handle rods up to 12 meters in length with diameters ranging from 10mm to 500mm, accommodating a wide range of industrial applications.
Uniform Coating Distribution: Advanced current distribution systems and rod rotation mechanisms ensure consistent coating thickness across the entire rod length.
Automated Process Control: Integrated PLC and HMI systems provide real-time monitoring and precise control of all critical parameters, ensuring consistent quality and operational efficiency.
High Production Efficiency: Optimized plating cycles and automated handling systems maximize throughput while maintaining superior coating quality.
Environmental Compliance: Features advanced waste treatment systems, fume extraction, and chemical recovery to meet stringent environmental regulations.
Comprehensive Safety Features: Incorporates advanced safety systems including emergency shutdown, chemical leak detection, and operator protection measures.

Process Flow

The Raymond Long Rod Advance Chrome Plating Equipment employs a systematic multi-stage process to achieve optimal chrome coating results on extended components.

Rod Loading

Long rods are automatically loaded onto the handling system using precision lifting and positioning equipment.

Surface Preparation

Comprehensive cleaning and surface preparation including degreasing, acid etching, and activation to ensure optimal chrome adhesion.

Pre-treatment

Specialized pre-treatment processes including nickel strike or copper plating to enhance chrome adhesion and coating performance.

Chrome Plating

Precision hard chrome plating using optimized current density, temperature control, and rod rotation to achieve uniform coating thickness.

Quality Control

In-line quality monitoring including thickness measurement, hardness testing, and visual inspection to ensure coating specifications.

Post-treatment

Final processing including stress relief, polishing, and dimensional verification to meet precise specifications.

Rod Unloading

Automated unloading and packaging systems ensure safe handling of finished chrome-plated rods.

Technical Specifications

Raymond Long Rod Advance Chrome Plating Equipment is engineered for superior performance, precision, and reliability, incorporating advanced features inspired by global industry leaders.

Technical Parameter	Specification Range
Equipment Type	Fully Automatic Long Rod Chrome Plating Line
Rod Length Capacity	1 - 12 meters (customizable)
Rod Diameter Range	10 - 500 mm
Chrome Coating Thickness	5 - 500 microns (customizable)
Chrome Hardness	850 - 1000 HV
Production Capacity	10 - 100 rods/day (depending on size and specifications)
Tank Material	Polypropylene (PP), PVC, or Lead-lined Steel
Chrome Electrolyte	Chromic Acid (CrO3) with Sulfuric Acid (H2SO4)
Current Density	15 - 50 A/dm² (adjustable)
Temperature Control	Automatic Heating/Cooling System (45-65°C)
Rod Rotation System	Variable Speed Rotation (0.5 - 5 RPM)
Control System	Advanced PLC Control (Siemens, Mitsubishi), HMI Touchscreen, SCADA Integration
Rectifiers	High-efficiency Thyristor or IGBT Rectifiers with precise current control
Handling System	Automated Rod Loading/Unloading with Precision Positioning
Environmental Systems	Fume extraction, mist suppression, wastewater treatment, chemical recovery
Safety Features	Emergency stop, interlocks, chemical leak detection, safety barriers
Automation Level	Fully Automated Process Control, Rod Handling, and Quality Monitoring

Solving Customer Pain Points

The Raymond Long Rod Advance Chrome Plating Equipment is designed to effectively address critical challenges faced by manufacturers of extended components requiring superior chrome coatings.

Challenge: Uneven Coating Thickness on Long Components

Our Solution: Advanced current distribution systems and precision rod rotation ensure uniform coating thickness across the entire length of extended components, eliminating thickness variations.

Challenge: Handling and Processing Long, Heavy Rods

Our Solution: Automated rod handling systems with precision lifting and positioning equipment safely and efficiently process long rods up to 12 meters in length.

Challenge: Poor Chrome Adhesion and Coating Failures

Our Solution: Comprehensive surface preparation and optimized pre-treatment processes ensure excellent chrome adhesion and long-lasting coating performance.

Challenge: Inconsistent Quality and Process Variability

Our Solution: Automated process control and real-time monitoring ensure consistent coating quality and eliminate process variability, improving overall product reliability.

Challenge: Low Production Efficiency and High Labor Costs

Our Solution: Fully automated systems maximize production efficiency while reducing labor requirements and minimizing human error in the plating process.

Challenge: Environmental Compliance and Safety Concerns

Our Solution: Integrated environmental control systems and comprehensive safety features ensure compliance with regulations and provide a safe working environment.

Related Keywords: long rod chrome plating, advance chrome plating equipment, precision chrome coating, hard chrome plating, wear resistance, corrosion protection, Raymond chrome solutions, industrial chrome plating, hydraulic rod plating.

Long bar chrome plating is a surface chrome plating process for long bar parts. Here are some details of the process:

I. Process Overview

Long rod chrome plating is mainly applied to long rod parts that need to improve surface hardness, wear resistance, corrosion resistance and other properties, such as piston rods, cylinder rods and so on. Through the chrome plating treatment, a uniform, dense chrome layer can be formed on the surface of the parts, which greatly improves the service life and performance of the parts.

II. Process Flow

The process flow of chrome plating for long bars usually includes the following steps:

1. Pre-treatment: Cleaning, degreasing, descaling and other treatments on the long bar parts to ensure that the parts surface is clean and free of impurities, providing a good basis for the subsequent chrome plating treatment.

2. Activation Treatment: Activating the surface of the parts by chemical or physical methods to make it easier to combine with the chrome ions in the chrome plating solution to form a solid coating.

3. Chrome plating treatment: After pre-treatment and activation treatment, the parts are put into the chromium plating tank, and a chromium plating layer is deposited on the surface of the parts by electrolysis. In the process of chromium plating, it is necessary to control the current density, temperature, chromium plating liquid composition and other parameters to ensure that the quality and thickness of the plating layer meet the requirements.

4. Post-treatment: After chrome plating is completed, the parts are cleaned and dried to remove residual chrome plating liquid and impurities. At the same time, the plating layer can also be polished, passivated and other treatments as needed to improve its appearance and performance.
