Raymond Aluminum Oxidation Equipment Production Line - Advanced Anodizing Solutions

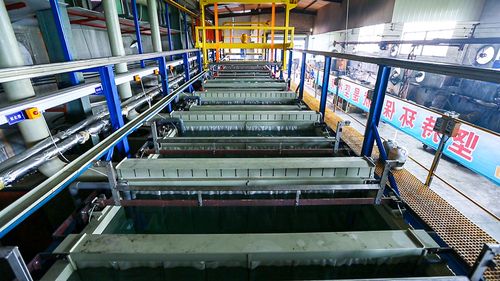

Raymond Aluminum Oxidation Equipment Production Line

Precision Anodizing for Enhanced Durability · Superior Aesthetics · Corrosion Protection

Product Introduction

Raymond Aluminum Oxidation Equipment Production Line represents the pinnacle of anodizing technology, designed to transform aluminum surfaces into highly durable, aesthetically pleasing, and corrosion-resistant finishes. Our state-of-the-art lines utilize advanced electrochemical processes to create a controlled anodic oxide layer, enhancing the natural properties of aluminum. This process significantly improves wear resistance, provides excellent electrical insulation, and allows for vibrant, long-lasting coloration, making it indispensable for industries ranging from architecture and automotive to electronics and consumer goods.

At Raymond, we engineer our oxidation lines with precision, efficiency, and environmental responsibility in mind. We offer comprehensive, customizable solutions that integrate the latest in automation and process control, ensuring consistent quality, reduced operational costs, and compliance with the most stringent industry standards. Partner with Raymond to achieve superior aluminum finishes that elevate your product's performance and market appeal.

Core Advantages of Raymond Aluminum Oxidation Lines
Enhanced Corrosion Resistance: The anodic oxide layer provides a robust barrier against environmental degradation, protecting aluminum from corrosion, salt spray, and harsh chemicals, significantly extending product lifespan.
Superior Wear and Abrasion Resistance: Anodized aluminum surfaces are significantly harder than raw aluminum, offering excellent resistance to scratches, abrasion, and daily wear, ideal for high-traffic or demanding applications.
Aesthetic Versatility: Our lines enable a wide range of vibrant and consistent colors, from subtle metallic tones to deep, rich hues, allowing for unparalleled design flexibility and enhanced product aesthetics.
Excellent Electrical Insulation: The anodic oxide layer is non-conductive, providing effective electrical insulation, which is crucial for electronic components and applications requiring dielectric properties.
Optimized Production Efficiency: Featuring advanced automation, precise temperature control, and streamlined process flows, our lines minimize manual intervention, reduce cycle times, and maximize throughput, leading to significant productivity gains.
Consistent and High-Quality Finishes: Intelligent monitoring and precise parameter control ensure uniform coating thickness, excellent adhesion, and consistent color across all batches, meeting the most stringent quality specifications.
Environmental Responsibility: Designed with sustainability at its core, our lines incorporate advanced wastewater treatment and exhaust gas management systems, ensuring compliance with global environmental regulations and promoting eco-friendly manufacturing.

Process Flow

The Raymond Aluminum Oxidation Equipment Production Line employs a sophisticated, multi-stage electrochemical process to create a durable and aesthetically pleasing anodic oxide layer on aluminum surfaces. Each step is meticulously controlled to ensure optimal coating performance and consistency.

Pre-treatment & Cleaning

Aluminum parts undergo thorough cleaning, degreasing, and etching to remove oils, dirt, and natural oxide layers. This prepares a clean, active surface for uniform anodizing.

Anodizing (Oxidation)

Parts are immersed in an electrolyte bath (typically sulfuric acid) where a controlled DC current is applied. The aluminum acts as the anode, forming a porous, hard anodic oxide layer on its surface.

Coloring (Optional)

For colored finishes, parts are immersed in a dye bath where pigments are absorbed into the porous oxide layer. Alternatively, electrolytic coloring can be used for metallic hues.

Sealing

The porous oxide layer is sealed through hydration, converting the amorphous oxide into a more stable, non-porous crystalline form. This enhances corrosion resistance and locks in any absorbed color.

Drying & Inspection

Finally, parts are thoroughly dried. A comprehensive inspection ensures the anodized coating meets all quality specifications for thickness, hardness, color uniformity, and corrosion resistance.

Process Innovation

Our lines feature advanced rectifier technology for precise current and voltage control, ensuring uniform oxide layer growth even on complex geometries. Automated chemical dosing systems maintain optimal bath concentrations, while integrated filtration and temperature control systems ensure consistent process conditions. We also incorporate energy recovery systems and closed-loop rinsing to minimize environmental impact and reduce operational costs, aligning with sustainable manufacturing practices.

Technical Specifications

Raymond Aluminum Oxidation Equipment Production Lines are designed for versatility and high performance, offering a range of configurations to suit diverse production requirements. Below are typical technical specifications, which can be fully customized to meet your specific operational needs and industry standards:

Technical Parameter	Specification Range	Notes
Production Line Type	Fully Automatic Gantry, Semi-Automatic, Manual (Rack Anodizing)	Customizable based on automation level and part geometry
Applicable Aluminum Alloys	1xxx, 3xxx, 5xxx, 6xxx, 7xxx series (specific alloys may vary in anodizing response)	Designed for diverse aluminum alloys
Anodizing Type	Type II (Sulfuric Acid Anodizing), Type III (Hardcoat Anodizing)	Meets international standards like MIL-A-8625, ASTM B580
Oxide Layer Thickness	Type II: 2.5-25 µm (0.1-1.0 mil); Type III: 25-100 µm (1.0-4.0 mil)	Precision control for functional and decorative coatings
Tank Volume	Customizable from 500 Liters to 30,000 Liters+	Designed to accommodate various production capacities and part sizes
Rectifier Capacity	500A to 20,000A (adjustable based on current density requirements)	High-efficiency rectifiers with ripple control for optimal anodizing quality
Automation Level	PLC-controlled, HMI touch screen, real-time monitoring, data logging, SCADA integration	Minimizes human error, enhances process stability and traceability
Material Handling	Overhead hoists, robotic arms, conveyor systems	Automated transfer and positioning of workpieces
Environmental Controls	Integrated exhaust gas scrubbers, advanced wastewater treatment, chemical recovery systems, air filtration	Ensures compliance with stringent environmental regulations and reduces waste
Energy Efficiency	High-efficiency pumps, heaters, and rectifiers; intelligent power management	Reduces operational energy consumption and carbon footprint

Customized Services

At Raymond, we specialize in delivering bespoke aluminum oxidation solutions that perfectly align with your unique manufacturing requirements. Our dedicated team of experts provides end-to-end support, from initial consultation and detailed engineering design to precision equipment manufacturing, seamless installation, and comprehensive post-sales technical support. We ensure that every Raymond Aluminum Oxidation Equipment Production Line is meticulously tailored to your specific production goals, facility layout, and long-term strategic objectives, providing a truly integrated and optimized solution for unparalleled performance.

Solving Customer Pain Points

The Raymond Aluminum Oxidation Equipment Production Line is meticulously engineered to address and overcome the most critical challenges faced by manufacturers in the aluminum finishing industry, transforming common pain points into significant competitive advantages:

Enhancing Surface Durability and Hardness

Our lines create an exceptionally hard anodic oxide layer, significantly improving the wear and abrasion resistance of aluminum parts, crucial for components exposed to friction or heavy use.

Providing Superior Corrosion Protection

The robust oxide coating acts as an impenetrable barrier, effectively protecting aluminum from environmental corrosion, chemical attack, and oxidation, thereby extending product lifespan in diverse applications.

Achieving Consistent and Vibrant Colors

With precise control over the anodizing process, our lines ensure uniform color absorption and consistent hue across all batches, eliminating color variations and enhancing the aesthetic appeal of finished products.

Optimizing Production Efficiency and Throughput

Highly automated systems and streamlined process flows dramatically increase processing speed and capacity, leading to higher output, shorter lead times, and substantial improvements in overall productivity and profitability.

Minimizing Operational Costs and Waste

Raymond lines are designed for maximum resource efficiency, reducing energy consumption, chemical usage, and material waste. This translates to significant savings in operational expenses and a quicker return on investment, while promoting sustainable practices.

Meeting Stringent Industry Standards

Precise control of all anodizing parameters and robust quality assurance processes ensure that every oxidized aluminum product meets the highest industry standards for thickness, hardness, and performance, guaranteeing consistent excellence.

Customer Success Stories

Our clients consistently achieve remarkable results after implementing Raymond Aluminum Oxidation Equipment Production Lines. A leading architectural firm reported a **50% increase in the lifespan of their anodized aluminum facade panels** due to enhanced corrosion resistance and UV stability. A prominent electronics manufacturer experienced a **40% reduction in rejection rates** for their anodized enclosures, directly attributing this to the superior uniformity and quality achieved with our lines. Furthermore, an automotive component supplier noted a **30% decrease in material waste** and a **20% improvement in energy efficiency**, highlighting our commitment to delivering tangible value and fostering long-term partnerships through sustainable and high-performance solutions.

Related Keywords: aluminum oxidation equipment production line, aluminum anodizing, anodizing line, surface treatment, aluminum finishing, corrosion resistance, wear resistance, aesthetic finish, electrical insulation, automated anodizing, industrial anodizing, customized solutions, Raymond

Aluminum oxidation equipment production line, also known as anodic oxidation equipment production line, is an automated production line specially designed for surface oxidation treatment of aluminum. This kind of production line forms a hard, corrosion-resistant and decorative oxide film on the surface of aluminum by electrochemical methods, so as to improve the abrasion resistance, corrosion resistance and aesthetics of aluminum.

Aluminum oxidation equipment production line usually includes the following main parts:

1. Pre-treatment equipment: It is used for cleaning, degreasing, descaling and other pre-treatment of aluminum to ensure that the surface of aluminum is clean and free of impurities so as to lay a good foundation for the subsequent oxidation treatment.		3. Post-treatment equipment: including coloring, sealing and other processes. Dyeing equipment is used to color the oxide film to meet different color requirements; sealing equipment is used to close the micropores of the oxide film to improve the corrosion and abrasion resistance of the oxide film.
2. Anodizing tank: This is the core part of the production line where the aluminum is anodized. Through electrolysis, a dense oxide film is formed on the surface of aluminum. The design of the anodizing tank, temperature, current density and other parameters will affect the quality and performance of the oxide film.		4. Auxiliary equipment: such as power supply, cooling system, control system, etc., which provide the necessary support and guarantee the normal operation of the production line.

The process flow of aluminum oxidation equipment production line generally includes: loading → pretreatment → anodic oxidation → post-treatment → inspection → unloading. In the production process, each process parameter must be strictly controlled to ensure that the aluminum products produced meet the quality requirements.

Why Raymond Aluminum oxidation Equipment Leads the Industry

Innovative Solutions for Precision, Efficiency & Sustainabilit

1. Advanced Multi-Lane Plating Technology

Raymond's proprietary multi-lane design can process 6-12 materials simultaneously, increasing throughput by up to 40% compared to single-line systems. Ideal for high volume production in the automotive and renewable energy sectors.

2. Artificial Intelligence Optimised Process Control

Integrated Artificial Intelligence algorithms dynamically adjust voltage, temperature and flow rate to ensure ≤2% thickness deviation (military-grade accuracy) while reducing manual intervention by 90%.

3. Military Specification Plating

Patented multi-stage current control technology ensures ±1.5μm plating consistency in accordance with MIL-STD-753E standards for aerospace and defence applications.

4. Space-saving modular structure

Stackable modules reduce the facility footprint by 55% and allow for phased expansion, reducing initial infrastructure costs for small and medium-sized enterprises by 30%.

5. Closed-loop eco-compliance

Automatic aluminum oxidation machine line is equipped with specialised exhaust gas treatment plant and wastewater recycling treatment plant with multi-layer filtration to meet different national emission standards.

6. Cross-industry adaptability

Aluminum oxidation machine can be configured into complex geometries (e.g. electric vehicle battery connectors, 5G waveguide components) with material compatibility from 0.1-50mm, serving the semiconductor, marine and hydrogen energy sectors.

Large scale production base

Lei Meng Equipment have a production base of 15000 square meters and multiple professional production lines including imported large processing centers,including equipment production lines for chrome plating, zinc plating, copper plating, nickel plating,silver plating, gold plating, plastic electroplating, hanging plating, rolling plating, push plating, spray coating, and pre-treatment.

Exquisite workmanship

Simple and flexible operation, stable operation,easy management,low mechanical failure rate, and high usage efficiency.The equipment adopts materials from well-known brands in Japan,Taiwan and China to ensure stable and durable quality.After on-site installation, the equipment is repeatedly tested to ensure stability and quality.

Master core technology

Engineers have been engaged in the electroplating industry for many years,continuously improving equipment quality and providing technical support.By increasing investment in technology and improving research and development capabilities, we now have advanced technology research and design capabilities in the industry

Lei Meng (Changzhou) Equipment Co. Ltd. is a large-scale equipment manufacturing enterprise.After more than ten years of rapid development, ithas two major production bases in Changzhou and Wuxi, as well as a technology research and development center with a total area of 15000 square meters. lt has multiple professional production lines, including imported large-scale machining centers.
