Nickel-plated alloy equipment production line,Nickel-plated equipment manufacturer
Precision Plating for Enhanced Performance · Superior Corrosion Resistance · Diverse Applications
Raymond Nickel-Plated Alloy Equipment Production Line delivers advanced solutions for depositing high-performance nickel alloy coatings, combining the inherent benefits of nickel with the unique properties of other metals. Our state-of-the-art lines are engineered to produce superior coatings that offer exceptional corrosion resistance, enhanced hardness, improved wear resistance, and tailored magnetic or electrical properties. These lines are indispensable for industries requiring specialized surface finishes, including automotive, aerospace, electronics, and general manufacturing.
At Raymond, we specialize in designing and manufacturing comprehensive nickel alloy plating systems that ensure precise control over alloy composition, coating thickness, and surface morphology. Our solutions integrate cutting-edge process technologies, advanced automation, and stringent quality control measures to guarantee consistent, high-quality results, reduced operational costs, and compliance with the most demanding industry standards. Partner with Raymond to achieve unparalleled performance and extend the lifespan of your components with our innovative nickel alloy plating solutions.
The Raymond Nickel-Plated Alloy Equipment Production Line employs a sophisticated, multi-stage electrochemical process to deposit high-performance nickel alloy coatings. Each step is meticulously controlled to ensure optimal alloy composition, coating properties, and surface quality.
Substrates undergo thorough cleaning, degreasing, and activation to remove contaminants and prepare a pristine surface for optimal adhesion of the nickel alloy coating. This step is crucial for preventing defects and ensuring uniform deposition.
Parts are immersed in a precisely formulated electrolyte bath containing nickel salts and salts of the alloying elements (e.g., phosphorus, boron, cobalt, zinc). A controlled electric current is applied, depositing the desired nickel alloy onto the substrate.
After plating, components are thoroughly rinsed to remove residual chemicals. Depending on the application, post-treatment steps such as heat treatment (for enhanced hardness or adhesion), passivation, or polishing may be applied.
Finally, parts are thoroughly dried. A comprehensive inspection ensures the nickel alloy coating meets all quality specifications for thickness, composition, hardness, corrosion resistance, and aesthetic appearance.
Our lines feature advanced bath chemistry management systems, including automated dosing and real-time analytical capabilities, to maintain precise concentrations of nickel and alloying elements, crucial for consistent alloy composition. We utilize high-efficiency rectifiers with advanced waveform control to optimize current distribution and ensure uniform deposition, even on complex part geometries. Integrated filtration and temperature control systems maintain optimal bath conditions, while intelligent process control systems minimize human error and enhance overall efficiency. Our designs also incorporate efficient rinsing and waste minimization technologies to reduce water consumption and chemical waste, aligning with sustainable manufacturing practices.
Raymond Nickel-Plated Alloy Equipment Production Lines are designed for versatility and high performance, offering a range of configurations to suit diverse production requirements. Below are typical technical specifications, which can be fully customized to meet your specific operational needs and industry standards:
| Technical Parameter | Specification Range | Notes |
|---|---|---|
| Production Line Type | Fully Automatic Gantry, Semi-Automatic, Manual (Rack Plating, Barrel Plating) | Customizable based on automation level, part geometry, and production volume |
| Applicable Substrates | Steel, Copper, Brass, Aluminum, Zinc Die Castings, etc. | Designed for excellent adhesion on various metal substrates |
| Nickel Alloy Types | Nickel-Phosphorus (Low, Medium, High P), Nickel-Boron, Nickel-Cobalt, Zinc-Nickel, etc. | Tailored for specific functional or decorative properties |
| Coating Thickness | 1 µm to 100 µm+ (adjustable based on application requirements) | Precision control for functional and decorative coatings |
| Tank Volume | Customizable from 500 Liters to 30,000 Liters+ | Designed to accommodate various production capacities and part sizes |
| Rectifier Capacity | 500A to 20,000A (adjustable based on current density requirements) | High-efficiency rectifiers with ripple control for optimal plating quality |
| Automation Level | PLC-controlled, HMI touch screen, real-time monitoring, data logging, SCADA integration | Minimizes human error, enhances process stability and traceability |
| Material Handling | Overhead hoists, robotic arms, conveyor systems, barrel rotators | Automated transfer and positioning of workpieces for rack and barrel plating |
| Environmental Controls | Integrated exhaust gas scrubbers, advanced wastewater treatment, chemical recovery systems, air filtration | Ensures compliance with stringent environmental regulations and reduces waste |
| Energy Efficiency | High-efficiency pumps, heaters, and rectifiers; intelligent power management | Reduces operational energy consumption and carbon footprint |
| Process Control | Automated chemical dosing, temperature control, pH monitoring, conductivity sensors, alloy composition analysis | Ensures consistent bath chemistry and plating quality |
At Raymond, we specialize in delivering bespoke nickel-plated alloy solutions that perfectly align with your unique manufacturing requirements. Our dedicated team of experts provides end-to-end support, from initial consultation and detailed engineering design to precision equipment manufacturing, seamless installation, and comprehensive post-sales technical support. We ensure that every Raymond Nickel-Plated Alloy Equipment Production Line is meticulously tailored to your specific production goals, facility layout, and long-term strategic objectives, providing a truly integrated and optimized solution for unparalleled performance.
The Raymond Nickel-Plated Alloy Equipment Production Line is meticulously engineered to address and overcome the most critical challenges faced by manufacturers in the alloy plating industry, transforming common pain points into significant competitive advantages:
Our advanced process control systems ensure the precise and consistent deposition of nickel alloys, eliminating variations in composition that can compromise coating performance and reliability.
Nickel alloy coatings provide superior protection against harsh environments and abrasive forces, significantly extending the lifespan of components and reducing the need for frequent replacements.
With optimized bath design and precise current distribution, our lines deliver highly uniform coating thickness, even on complex geometries, preventing thin spots and ensuring consistent protection and performance.
Highly automated systems, reduced chemical consumption, and minimized waste generation lead to significant improvements in operational efficiency and a substantial reduction in overall production costs, enhancing profitability.
Our processes are designed to meet and exceed various industry standards for nickel alloy plating, ensuring that your products comply with performance, safety, and environmental regulations, building trust and reliability.
By precisely controlling the alloy composition, our lines enable the customization of functional properties such as hardness, ductility, magnetism, and electrical conductivity, providing solutions for highly specialized applications.
Our clients consistently achieve remarkable results after implementing Raymond Nickel-Plated Alloy Equipment Production Lines. A leading aerospace component manufacturer reported a **40% increase in the corrosion resistance** of their critical parts, directly attributing this to the superior quality of our nickel-phosphorus coatings. A prominent electronics company achieved **enhanced magnetic properties** for their specialized sensors, leading to improved device performance and reliability. Furthermore, an automotive supplier noted a **25% reduction in wear-related failures** for their engine components, highlighting our commitment to delivering tangible value and fostering long-term partnerships through innovative and high-performance solutions.

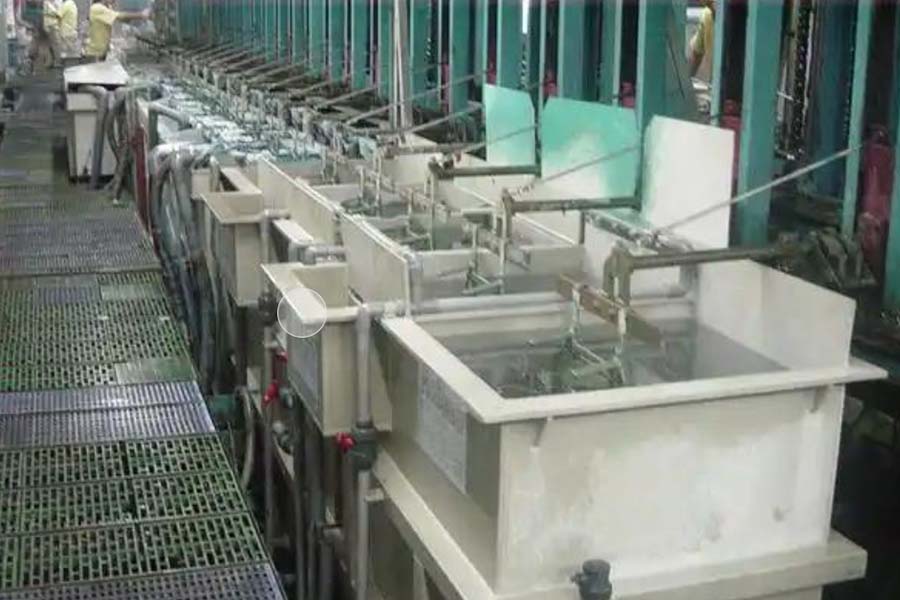

Nickel plating equipment production line is a kind of automatic production line specialized in the production of nickel plated alloy products. This kind of production line usually integrates several process links such as plating, cleaning, drying, etc., which can efficiently and stably complete the processing task of nickel-plated alloy products.
| 1. Pre-treatment equipment: including oil removal, rust removal, activation and other process equipment, used for surface treatment of the workpiece to improve the bonding between the plating layer and the substrate. |
| 3. Cleaning equipment: It is used to clean the workpiece after plating to remove the residual plating solution and impurities on the surface to ensure the quality of the plating layer. |
|
| 2. Electroplating tank: Electroplating tank is the core equipment of nickel alloy plating production line, which is equipped with nickel alloy plating solution inside. The workpieces in the plating tank will pass through the action of electric current, so that the nickel ions in the plating solution will be deposited on the surface of the workpieces to form the plating layer. |
| 4. Drying equipment: Dry the workpiece after cleaning to prevent moisture from corroding the plating layer or affecting the appearance quality of the plating layer. |
|
II. Working Principle
The working principle of nickel plating alloy equipment production line is mainly to realize the deposition of plating layer by electrochemical reaction. In the electroplating process, the workpiece acts as the cathode, and the nickel ions in the plating solution move to the cathode under the action of electric field, and get electrons on the surface of the workpiece, and then reduce to metallic nickel, which is deposited on the surface of the workpiece to form the plating layer. At the same time, other components in the plating solution also participate in the reaction to form a nickel-plated alloy layer with specific properties.
Innovative Solutions for Precision, Efficiency & Sustainabilit

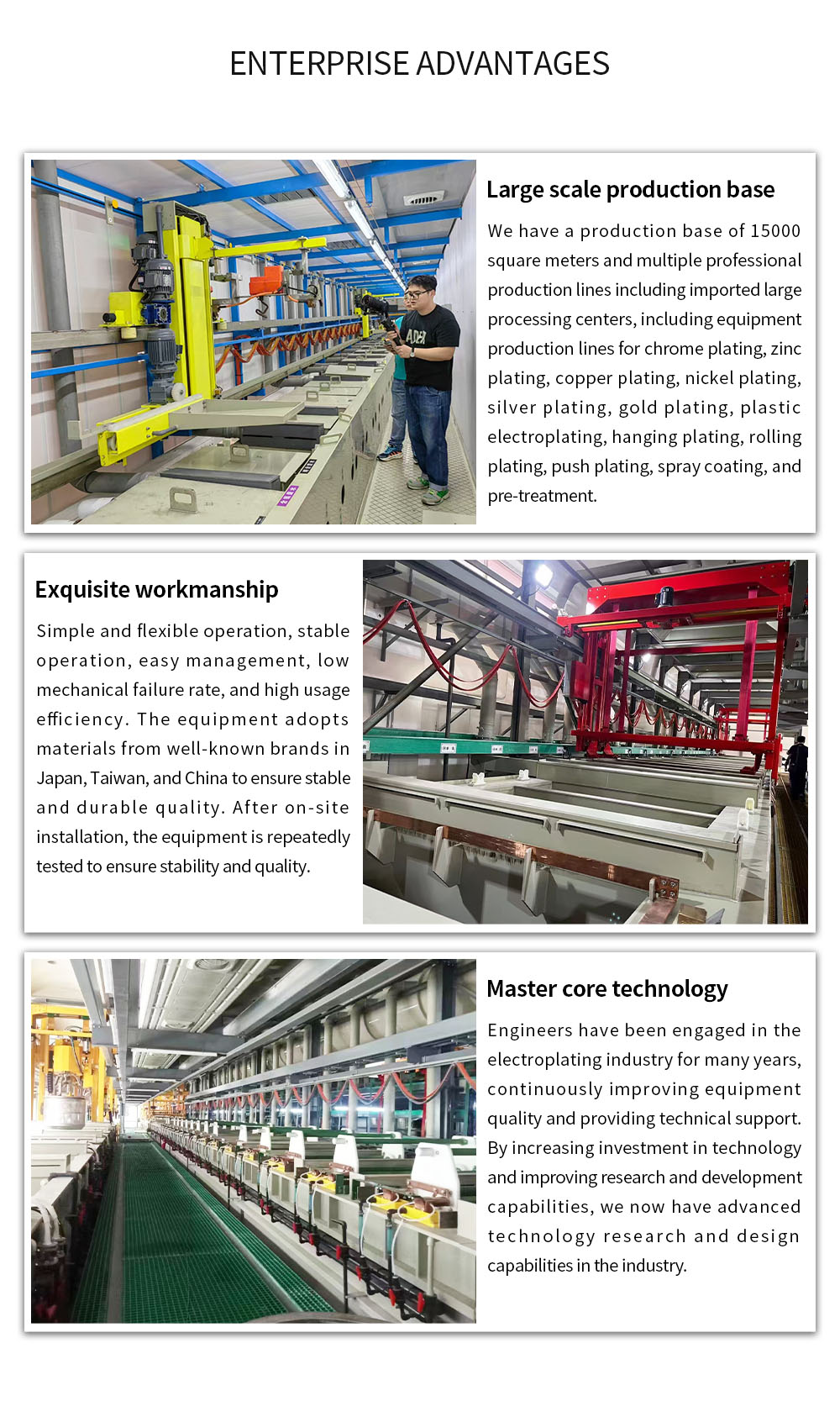

Large scale production base
Lei Meng Equipment have a production base of 15000 square meters and multiple professional production lines including imported large processing centers,including equipment production lines for chrome plating, zinc plating, copper plating, nickel plating,silver plating, gold plating, plastic electroplating, hanging plating, rolling plating, push plating, spray coating, and pre-treatment.
Exquisite workmanship
Simple and flexible operation, stable operation,easy management,low mechanical failure rate, and high usage efficiency.The equipment adopts materials from well-known brands in Japan,Taiwan and China to ensure stable and durable quality.After on-site installation, the equipment is repeatedly tested to ensure stability and quality.
Master core technology
Engineers have been engaged in the electroplating industry for many years,continuously improving equipment quality and providing technical support.By increasing investment in technology and improving research and development capabilities, we now have advanced technology research and design capabilities in the industry
Lei Meng (Changzhou) Equipment Co. Ltd. is a large-scale equipment manufacturing enterprise.After more than ten years of rapid development, ithas two major production bases in Changzhou and Wuxi, as well as a technology research and development center with a total area of 15000 square meters. lt has multiple professional production lines, including imported large-scale machining centers.
